Peterson Real Fyre mSeries (Millivolt) Direct Vent Insert Review

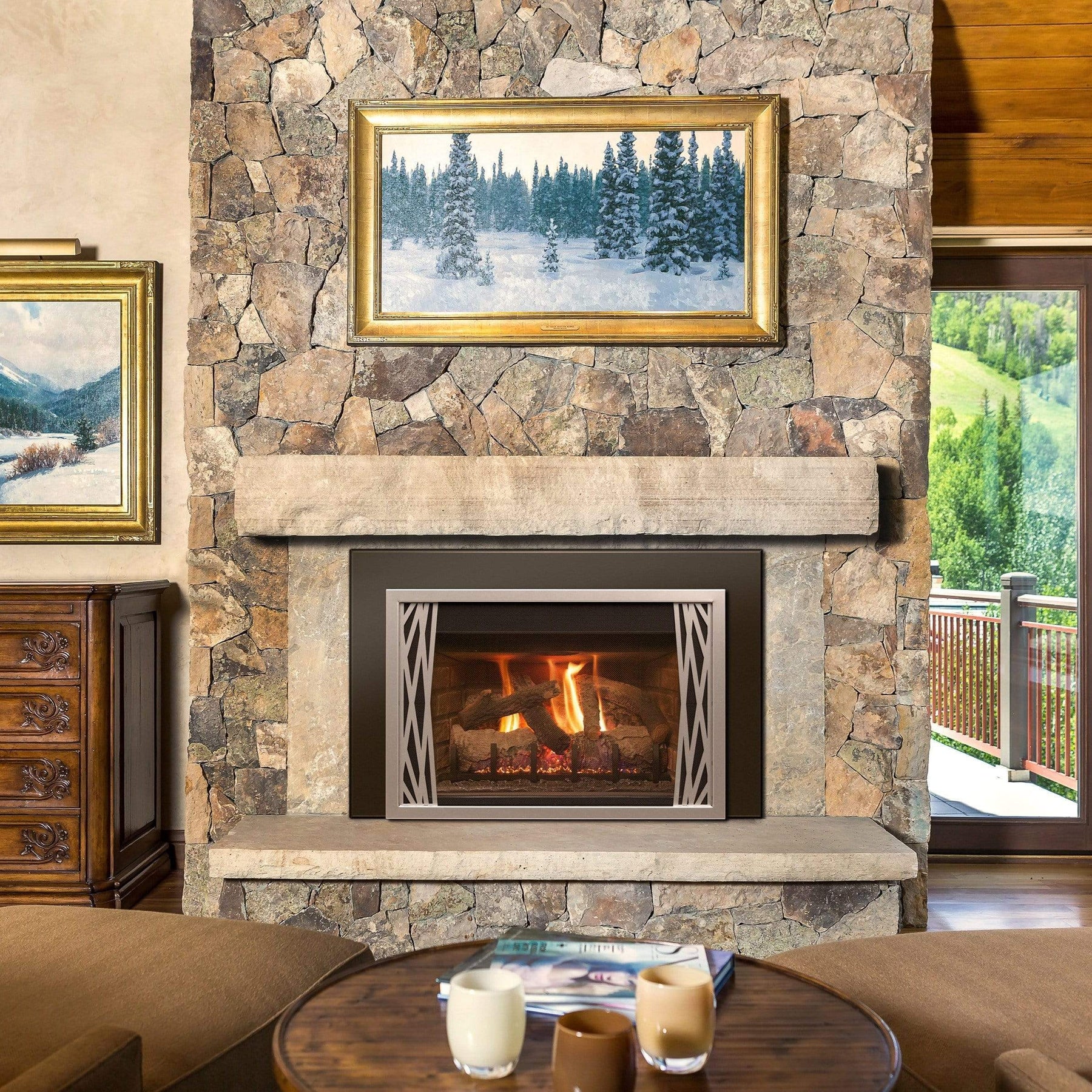

Nothin brings a family or group of friends closer like a cup of warm cocoa or coffee in front of the Peterson Real Fyre mSeries (Millivolt) Direct Vent Insert! This gas insert combined captivating dancing flames and lovely glowing ember that looks like your traditional wood fire but with the efficiency and convenience of your modern gas heaters. It also helps that it looks good, a combination of modern touch but with the things you love from your traditional fireplaces.
Features:
- Weight:
- For 25": 99 lbs
- For 30": 116 lbs
- For 36": 147 lbs
- For 25": 17,000 to 25,000 BTU’s natural gas & 17,000 to 20,000 BTU’s propane
- For 30": 23,000 to 32,000 BTU’s natural gas & 23,000 to 29,000 BTU’s propane
- For 36": 30,000 to 40,000 BTU’s natural gas & 28,000 to 33,000 BTU’s propane

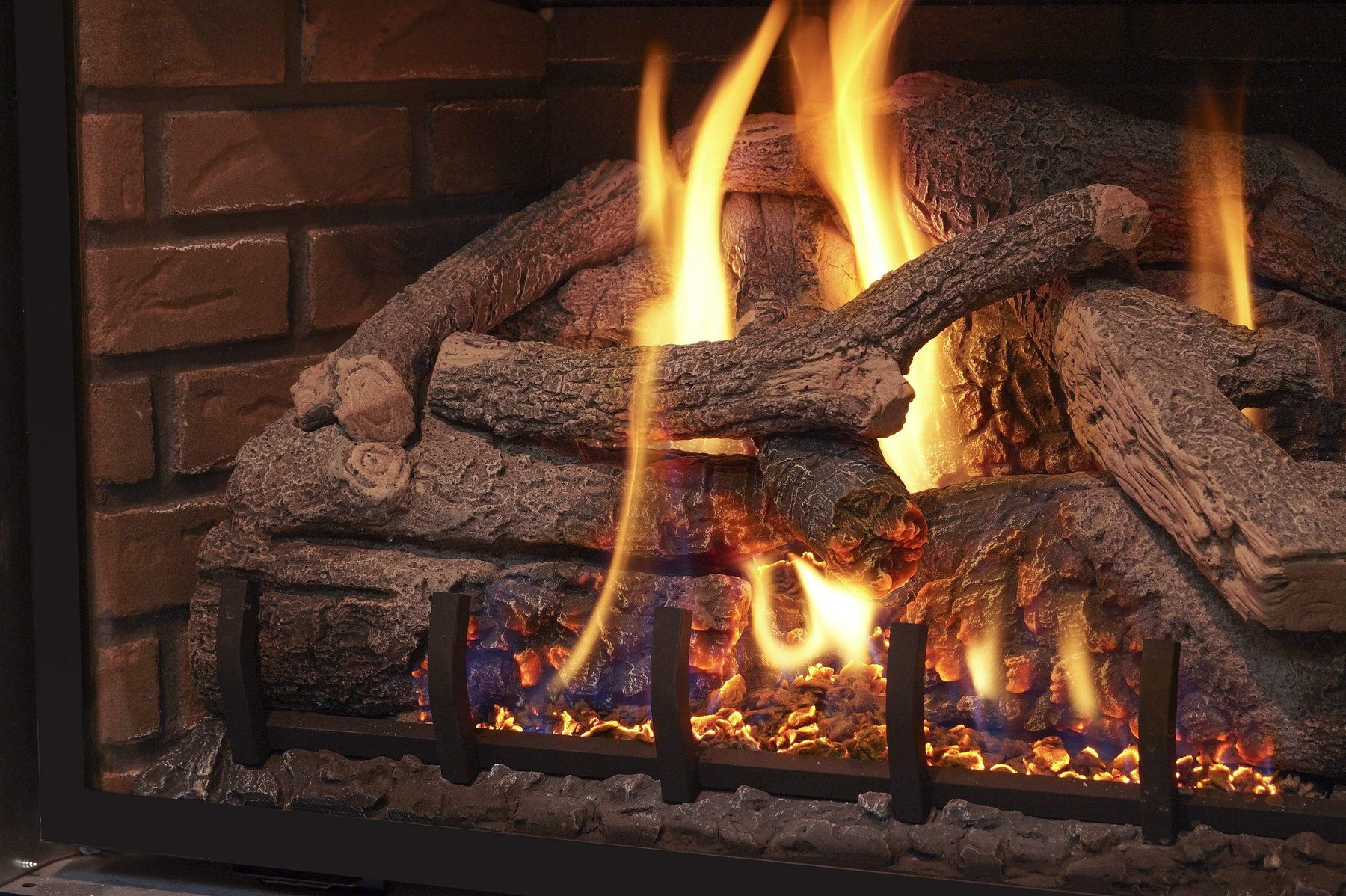

- Expansive viewing area showcases the log set and fire to the entire room
- A reliable millivolt ignition system with a standing pilot ensures operation in a power failure
- Handheld on/off remote with temperature display and thermostatic control function

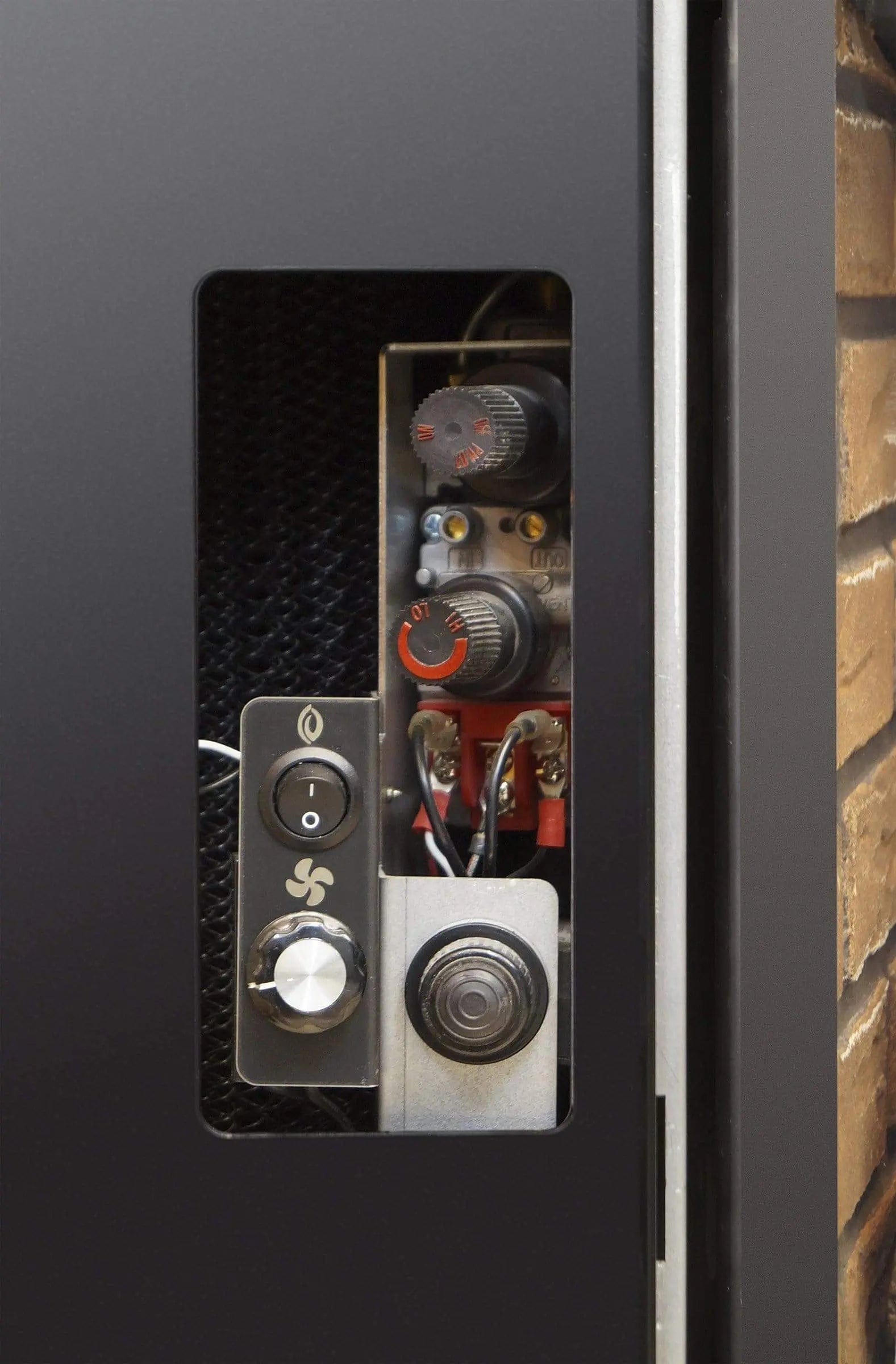

- Easily accessible controls to adjust flames and blower speed hidden in surround
- Choice of natural gas or propane models in three sizes to fit most fireplaces
- Adjustable flames and heat
- Thermally activated, high performance 125 CFM blower distributes heat quickly and quietly
- Surrounds in 3-sided or 4-sided configurations cover most fireplace openings and may be highlighted with decorative overlays in a variety of finishes to match your style and décor
Manuals:
Specifications:
Minimum Clearance
|
Description |
Dimensions |
| A |
Clearance required from the side edge of the insert to combustibles or sidewall |
7" |
| B |
Clearance required from the top edge of the insert to combustibles or 8" mantel
|
16″ |
| C |
Clearance required from the top edge of the insert to combustibles or 12" mantel
|
22″ |
| D |
Clearance required in front of the insert to allow the door to fully open
|
35" |
Unit Dimensions - 25"
| Description |
Dimensions
|
| A. Unit Rear Width |
21" |
| B. Unit Front Width |
30-3/8" |
| C. Unit Depth |
14.5" |
| D. Vent Depth - Intake |
12" |
| E. Vent Depth - Exhaust |
7-7/8" |
| F. Unit Rear Height |
15.75" |
| G. Unit Front Height |
19" |
Unit Dimensions - 30"
| Description |
Dimensions
|
| A. Unit Rear Width |
22" |
| B. Unit Front Width |
34-3/4" |
| C. Unit Depth |
16-7/8" |
| D. Vent Depth - Intake |
14-1/2" |
| E. Vent Depth - Exhaust |
10-1/4" |
| F. Unit Rear Height |
18-3/4" |
| G. Unit Front Height |
22" |
Unit Dimensions - 36"
| Description |
Dimensions
|
| A. Unit Rear Width |
24-1/2" |
| B. Unit Front Width |
37-5/8" |
| C. Unit Depth |
17-5/8" |
| D. Vent Depth - Intake |
14-1/2" |
| E. Vent Depth - Exhaust |
10-1/4"
|
| F. Unit Rear Height |
22" |
| G. Unit Front Height |
25-1/2" |
Surround Kit Dimensions - 25"
| Description |
A |
B |
C |
D |
E |
| Surround 3-sided, small |
34-3/8" |
22-1/2" |
5" |
4-3/4" |
1-1/2" |
| Surround 3-sided, medium |
37-3/8" |
25-1/4" |
7-3/4" |
6-1/4" |
1-1/2" |
| Surround 3-sided, large |
40-3/8" |
28" |
10-1/2" |
7-3/4" |
1-1/2" |
| Surround 4-sided, small |
34-3/8" |
27" |
4-3/4" |
4-3/4" |
1-1/2" |
| Surround 4-sided, medium |
37-3/8" |
30" |
6-1/4" |
6-1/4" |
1-1/2" |
Surround Kit Dimensions - 30"
| Description |
A |
B |
C |
D |
E |
| Surround 3-sided, small |
38-3/8" |
25-1/2" |
5-1/4" |
4-1/2" |
1-1/2" |
| Surround 3-sided, medium |
41-3/8" |
28" |
6-1/4" |
7-1/2" |
1-1/2" |
| Surround 3-sided, large |
44-3/8" |
31" |
7-3/4" |
10-1/2" |
1-1/2" |
| Surround 4-sided, small |
38-3/8" |
30" |
4-3/4" |
4-3/4" |
1-1/2" |
| Surround 4-sided, medium |
41-3/8" |
33" |
6-1/4" |
6-1/4" |
1-1/2" |
Surround Kit Dimensions - 36"
| Description |
A |
B |
C |
D |
E |
| Surround 3-sided, small |
43-3/8" |
30" |
6" |
5-3/4" |
1-1/2" |
| Surround 3-sided, medium |
45-3/8" |
32" |
8" |
6-3/4" |
1-1/2" |
| Surround 3-sided, large |
49-3/8" |
35" |
11" |
8-3/4" |
1-1/2" |
| Surround 4-sided, small |
43-3/8" |
33" |
4-1/2" |
5-3/4" |
1-1/2" |
| Surround 4-sided, medium |
45-3/8" |
36" |
6" |
6-3/4" |
1-1/2" |
Recommended Surround (To help you determine the appropriate surround for your setup) - 25"
| Recommended Surround |
F max |
G max |
| Surround 3-sided, small |
32-3/8" |
21-1/2" |
| Surround 3-sided, medium |
35-3/8" |
24-1/4" |
| Surround 3-sided, large |
38-3/8" |
27" |
| Surround 4-sided, small |
32-3/8" |
19-3/4" |
| Surround 4-sided, medium |
35-3/8" |
24-1/4" |
Recommended Surround (To help you determine the appropriate surround for your setup) - 30"
| Recommended Surround |
F max |
G max |
| Surround 3-sided, small |
36-3/8" |
24-1/2" |
| Surround 3-sided, medium |
39-3/8" |
27" |
| Surround 3-sided, large |
42-3/8" |
30" |
| Surround 4-sided, small |
36-3/8" |
24-1/4" |
| Surround 4-sided, medium |
39-3/8" |
25-3/4" |
Recommended Surround (To help you determine the appropriate surround for your setup) - 36"
| Recommended Surround |
F max |
G max |
| Surround 3-sided, small |
41-3/8" |
29" |
| Surround 3-sided, medium |
43-3/8" |
31" |
| Surround 3-sided, large |
47-3/8" |
34" |
| Surround 4-sided, small |
41-3/8" |
27-1/2"" |
| Surround 4-sided, medium |
43-3/8" |
29" |
Technical Data Specifications
Wiring Diagram
Get the Peterson Real Fyre mSeries (Millivolt) Direct Vent Insert today and enjoy the warmth like a hug from your special someone all day long!
