Real Fyre Split Oak Designer Plus Vented Gas Logs

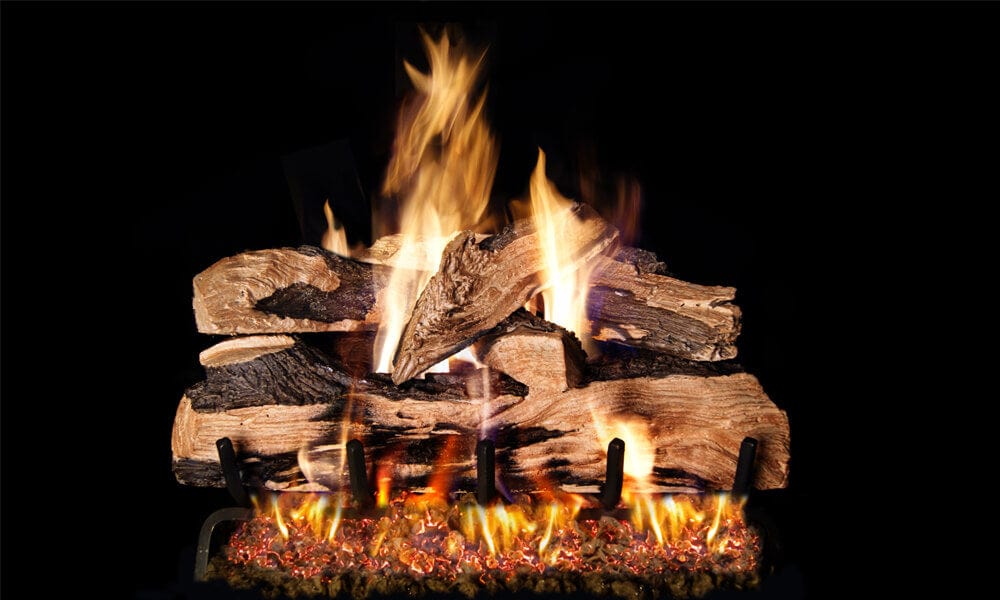

Real Fyre 24" Split Oak Designer Plus Vented Gas Log Set – SDP-24
The Real Fyre 24" Split Oak Designer Plus Vented Gas Log Set SDP-24 recreates the layered appearance of naturally split firewood with a detailed seven-piece refractory ceramic log arrangement. Designed for compatible Peterson Real Fyre vented burner systems, the SDP-24 combines realistic bark texture, natural-looking coloration, steel-reinforced construction, and manufacturer-prescribed log placement for an authentic traditional fireplace presentation.
Model / SKU
SDP-24
Nominal Size
24 Inches
Log Style
Split Oak Designer Plus
Log Count
7 Pieces
Application
Vented Fireplace
Burner Included
No
Compatible Burners
G4, G45, G45 SS, G46
Available Sizes
18", 20", 24", 30", 36"
Important: Decorative Log Set Only – Burner Not Included
The SDP-24 includes the seven-piece Split Oak Designer Plus log set only. A compatible Peterson Real Fyre vented burner system is required and sold separately.
Burners may appear in product imagery for demonstration purposes, but they are not included with this product.
Traditional Split-Oak Styling for a Real Fyre Vented Burner System
The SDP-24 is designed for homeowners who want the layered appearance of naturally split firewood combined with the convenience and flame presentation of a compatible Real Fyre gas burner.
Its seven-piece arrangement builds visual depth across the fireplace, while high-definition bark detailing and natural coloration help recreate the character of real split oak.
The logs are manufactured from refractory ceramic material and reinforced internally with steel to help maintain structural integrity in the high-temperature environment of a gas fireplace.
Compatibility first: The SDP-24 is not a complete burner-and-log package and should not be treated as a universal replacement log set. The burner family, fuel, controls, fireplace dimensions, and venting requirements must all be verified separately.
Real Fyre SDP-24 at a Glance
Manufacturer
Robert H. Peterson Co.
Series
Split Oak Designer Plus
Product Type
Vented Gas Log Set
Log Configuration
7 Pieces
Construction
Refractory Ceramic with Steel Reinforcement
Application
Vented Fireplace
Is the Real Fyre SDP-24 Right for Your Fireplace?
Best For
- Buyers wanting a traditional 24-inch Split Oak gas-log presentation.
- Compatible Real Fyre G4 burner systems.
- Compatible Real Fyre G45 burner systems.
- Compatible G45 Stainless Steel burner configurations.
- Compatible Real Fyre G46 burner systems.
- Vented fireplaces with a working chimney and flue.
- Homeowners who want burner controls and fuel type selected separately.
- Installations where the manufacturer-prescribed log arrangement can be followed.
Consider Another Log Set If
- You need a vent-free gas log set.
- You expect the burner to be included.
- You plan to use a non-Real Fyre burner or valve system.
- Your fireplace cannot meet the requirements of the selected burner.
- Your fireplace does not have the required working chimney or flue.
- You need the logs themselves to determine fuel type, BTU output, or ignition controls.
- You intend to freely rearrange the logs without following the placement instructions.
Why Choose the Real Fyre SDP-24?
Split Oak Designer Plus Styling
The sculpted log surfaces recreate the layered, irregular appearance of naturally split firewood.
Seven-Piece Arrangement
Seven individual logs create depth and dimension across the fireplace.
Refractory Ceramic Construction
The logs are designed to retain strength and appearance in the high-temperature environment of a gas fireplace.
Steel Reinforcement
Internal reinforcement provides additional structural support within the decorative logs.
Vented Burner Compatibility
The SDP-24 is designed for compatible Peterson Real Fyre vented burner and valve systems.
Manufacturer-Defined Placement
The prescribed arrangement helps maintain adequate openings for the intended flame pattern and combustion performance.
Compatible Real Fyre Burner Families
The SDP-24 is listed for use with compatible Peterson Real Fyre vented burner systems from the following families:
| Burner Style |
Application |
| G4 Series |
Real Fyre vented burner system |
| G45 Series |
Real Fyre vented burner system |
| G45 Stainless Steel |
Stainless steel G45 vented burner configuration |
| G46 Series |
Real Fyre vented burner system |
Compatibility note: Different burner configurations can have different fuel types, BTU ratings, ignition systems, controls, fireplace dimensions, and installation requirements. Verify the exact burner model before ordering the SDP-24.
The Burner Determines Fuel, BTU Output & Controls
The SDP-24 decorative logs do not determine the operating specifications of the complete gas fireplace system.
Fuel Type
Natural Gas or Propane compatibility is determined by the selected burner configuration.
BTU Input
Heat input is determined by the exact burner model and size.
Ignition System
Match-lit, standing-pilot, or electronic ignition depends on the selected burner/control configuration.
Remote Controls
Remote On/Off or flame-height functionality depends on the compatible burner package.
Fireplace Dimensions
Minimum firebox dimensions are determined by the selected burner and control configuration.
Gas Pressure
Supply and operating pressures must be verified from the manual for the exact burner being installed.
Real Fyre SDP-24 Specifications
| Brand |
Real Fyre |
| Manufacturer |
Robert H. Peterson Co. |
| Model |
SDP-24 |
| Series |
Split Oak Designer Plus |
| Product Type |
Vented Gas Log Set |
| Nominal Size |
24 Inches |
| Log Configuration |
7 Pieces |
| Construction |
Refractory Ceramic with Steel Reinforcement |
| Application |
Vented Fireplace |
| Burner Included |
No |
| Required Burner |
Compatible Peterson Real Fyre Vented Burner System |
| Compatible Burner Styles |
G4, G45, G45 Stainless Steel, G46 |
| BTU Rating |
Determined by Selected Burner System |
| Gas Type |
Determined by Selected Burner System |
| Ignition / Controls |
Determined by Selected Burner Configuration |
| Minimum Fireplace Size |
Determined by Selected Burner Configuration |
| Available Series Sizes |
18", 20", 24", 30", 36" |
What's Included with the SDP-24?
The manufacturer's dedicated placement instructions identify seven decorative log components for the 24-inch SDP-24 configuration.
| Log Position |
Component |
| 1 |
SDPL-20BR |
| 2 |
SDPL-24BF |
| 3 |
SDPL-15T |
| 4 |
SDPL-12T |
| 5 |
SDPL-13T |
| 6 |
SDPL-10T |
| 7 |
SDPL-11T |
All SDP-24 log-set items are identified as being supplied in one box.
Not included: The compatible burner system is not included with the SDP-24 log set.
SDP-24 Seven-Log Placement
The Real Fyre SDP-24 uses a dedicated seven-log arrangement. Correct positioning is important for flame presentation, combustion, and controlling excessive soot.
The front and rear logs establish the base of the installation. The remaining logs are then positioned over that base according to the manufacturer's prescribed sequence.
1. Rear Base Log
SDPL-20BR establishes the rear foundation of the log arrangement.
2. Front Base Log
SDPL-24BF forms the front foundation of the seven-log stack.
3. Upper Log
SDPL-15T is positioned according to the dedicated SDP-24 placement diagram.
4. Upper Log
SDPL-12T occupies its prescribed position over the base logs.
5. Upper Log
SDPL-13T contributes to the layered split-oak appearance.
6. Upper Log
SDPL-10T must remain positioned to preserve the intended flame openings.
7. Upper Log
SDPL-11T completes the manufacturer-defined SDP-24 arrangement.
Do not simply stack the logs wherever they fit. Follow the dedicated Split Oak Designer Plus placement instructions whenever installing or repositioning the SDP-24.
Why Correct Log Placement Matters
Correct Installation
- Follow the manufacturer-prescribed seven-log sequence.
- Maintain adequate openings between logs.
- Make sure the base logs are correctly positioned and stable.
- Keep the upper logs securely seated.
- Monitor flame contact and soot after installation.
- Reposition top logs only according to manufacturer guidance if required to reduce excessive flame contact.
Do Not
- Create a custom stack for appearance alone.
- Block the intended flame openings.
- Ignore continued black soot accumulation.
- Operate with unstable or incorrectly positioned logs.
- Handle hot refractory logs immediately after shutdown.
Fireplace & Installation Requirements
The SDP-24 does not have one universal firebox-size requirement independent of the burner. Installation requirements are determined by the exact compatible burner and control configuration.
Before installation, verify:
Compatible Burner
Confirm that the exact G4, G45, G45 Stainless Steel, or G46 configuration supports the SDP-24.
Burner Size
Verify the appropriate burner size for the 24-inch decorative log set.
Fuel Type
The available gas supply must match the selected burner configuration.
Fireplace Dimensions
Verify front width, rear width, depth, and height against the exact burner manual.
Chimney & Flue
The fireplace must provide the working venting required for the selected vented burner.
Professional Installation
Installation and service should be performed by qualified professional personnel as required by the applicable burner instructions.
Vented Fireplace & Chimney Requirements
The SDP-24 is intended for a vented gas-log application.
Compatible Real Fyre vented burner systems are designed for installation in an appropriate solid-fuel-burning fireplace with a working flue and noncombustible construction.
Damper requirement: Compatible Real Fyre vented burner instructions require the chimney damper to remain fully open while the gas burner is operating.
Because vented gas-log burners are designed to produce yellow decorative flames, adequate fireplace and chimney ventilation must be maintained whenever the system is operating.
Flame Contact & Soot Management
Some carbon buildup can occur where yellow flame contacts the decorative logs.
Continued or excessive soot accumulation can indicate that upper logs are restricting the intended flame openings or receiving too much direct flame contact.
If soot continues: Recheck the SDP-24 placement instructions and reposition the applicable upper logs according to manufacturer guidance to provide additional openings for the flames.
If significant sooting continues after correction: Stop using the gas-log system and contact a qualified professional service technician.
Hot Surface & Handling Precautions
The refractory ceramic logs become hot during operation and remain hot after the burner has been shut off.
Burn hazard: Allow adequate time for the logs to cool before handling or repositioning them. Use appropriate heat-resistant gloves when handling is necessary.
Split Oak Designer Plus Available Sizes
24" Split Oak Designer Plus
Current Product – SDP-24
View SDP-24
Flame Authority Expert Recommendation
Choose the Real Fyre SDP-24 when you want a traditional 24-inch split-oak presentation and already have or plan to purchase a compatible Real Fyre G4, G45, G45 Stainless Steel, or G46 vented burner system.
Its seven-piece layout, detailed bark texture, natural wood-inspired coloration, refractory ceramic construction, steel reinforcement, and burner-specific placement make it a strong decorative option for a properly vented fireplace.
The most important buying consideration is the burner. Before ordering, verify the exact burner family, burner size, fuel type, control configuration, fireplace dimensions, chimney and damper condition, gas supply, and SDP-24 compatibility.
Do not choose the SDP-24 based only on its 24-inch nominal size. The required installation space is determined by the burner system used with the logs.
Official Manufacturer Resources
Real Fyre Vented Product Catalog
Split Oak Designer Plus sizing, compatible burner families, product information, and Real Fyre vented burner options.
Split Oak Designer Plus Log Placement Instructions – SDP-24
Dedicated SDP-24 seven-log arrangement, component identification, placement sequence, spacing, flame-contact, and soot guidance.
G4 Burner Installation & Owner's Manual
G4-specific fireplace dimensions, installation, fuel, venting, controls, operation, and service information.
G45 Burner Installation & Owner's Manual
Controlled G45 burner installation, sizing, gas supply, venting, controls, safety, and maintenance guidance.
G45 Match-Lit Burner Manual
Match-lit G45 fireplace sizing, gas supply, venting, burner media, operation, and installation guidance.
G45 Stainless Steel Burner Manual
Installation and operating guidance for compatible controlled G45 stainless steel burner systems.
G45 Stainless Steel Match-Lit Burner Manual
Match-lit installation guidance for compatible G45 stainless steel burner configurations.
G46 Burner Instructions
G46-specific installation, sizing, fuel, controls, venting, operation, and service requirements.
Real Fyre SDP-24 FAQs
What is the Real Fyre SDP-24?
The SDP-24 is a 24-inch Split Oak Designer Plus seven-piece refractory ceramic vented gas log set designed for compatible Peterson Real Fyre vented burner systems.
Does the Real Fyre SDP-24 include a burner?
No. The SDP-24 includes the decorative seven-piece log set only. A compatible Peterson Real Fyre vented burner system is required and sold separately.
What burners are compatible with the Real Fyre SDP-24?
The supplied product information lists compatible G4, G45, G45 Stainless Steel, and G46 Series Real Fyre vented burner systems. Verify the exact burner configuration before ordering.
Is the Real Fyre SDP-24 vented or vent-free?
The SDP-24 is a vented gas log set intended for use with compatible Peterson Real Fyre vented burner systems.
How many logs are included with the SDP-24?
The SDP-24 includes seven decorative log pieces. The manufacturer's placement instructions identify all seven component numbers and state that the set is supplied in one box.
What are the SDP-24 logs made from?
The logs use refractory ceramic construction with internal steel reinforcement according to the supplied product information.
What size fireplace is required for the SDP-24?
There is no single minimum fireplace size determined only by the SDP-24 logs. Minimum dimensions depend on the exact compatible burner family, burner size, and control configuration selected.
Does the SDP-24 determine the BTU rating?
No. BTU input is determined by the selected compatible burner system. The ceramic log set itself does not have an independent burner-input rating.
Is the SDP-24 for Natural Gas or Propane?
The decorative logs themselves are not fuel-specific. Natural Gas or Propane compatibility is determined by the selected burner system.
Does the SDP-24 include a remote control?
No. Any valve, pilot, ignition, or remote control is part of the separately purchased burner configuration.
Can I use the SDP-24 with a non-Real Fyre burner?
No. The manufacturer's Split Oak Designer Plus instructions specify use with Peterson Real Fyre burners and valves.
Why is correct SDP-24 log placement important?
Correct placement helps maintain adequate openings between the logs, proper combustion, and the intended flame presentation. Improper positioning can contribute to excessive flame contact and soot.
Can the SDP-24 logs be arranged differently?
Real Fyre provides a prescribed placement sequence that should be followed. Some upper-log adjustment may be necessary if continued soot indicates excessive flame contact, but manufacturer spacing and ventilation requirements must still be maintained.
What should I do if soot develops on the SDP-24 logs?
Some carbon can occur where yellow flames contact the logs. If soot continues to accumulate, recheck the placement instructions and adjust the top logs according to manufacturer guidance to create additional flame openings.
What if significant soot continues after repositioning?
Stop using the gas-log system and contact a qualified professional service technician.
Does the fireplace damper need to be open with the SDP-24?
Compatible Real Fyre vented burner instructions require the chimney damper to remain fully open while the burner is operating.
Can the SDP-24 be used in a fireplace without a working chimney?
No vent-free application is established for this SDP-24 product page. The supplied information identifies the SDP-24 for compatible vented burner systems installed in an appropriate fireplace with working venting.
Should the SDP-24 be professionally installed?
Installation and service of the compatible burner system should be performed by a qualified professional service technician, service agency, or gas supplier according to the applicable burner manual.
Can I handle the logs immediately after shutting off the burner?
No. The refractory ceramic logs remain hot after operation. Allow them to cool before handling or use appropriate heat-resistant gloves when repositioning is necessary.
What sizes are available in Split Oak Designer Plus?
The supplied product information identifies 18-inch, 20-inch, 24-inch, 30-inch, and 36-inch Split Oak Designer Plus vented gas log sets.
Where can I find the exact SDP-24 log placement instructions?
Before You Order
Confirm Before Purchase
- You specifically need the 24-inch SDP-24 Split Oak Designer Plus log set.
- Your intended application is vented.
- You have or will purchase a compatible G4, G45, G45 Stainless Steel, or G46 burner.
- You understand that the burner is sold separately.
- The selected burner matches your Natural Gas or Propane supply.
- Your fireplace meets the minimum dimensions for that exact burner and control configuration.
- Your fireplace has the required working chimney and flue.
- The damper can remain fully open during burner operation.
- The seven logs can be installed according to the manufacturer placement instructions.
- Qualified professional installation and service are planned.
Do Not Assume
- That the SDP-24 includes a burner.
- That the SDP-24 works with any gas burner.
- That the decorative logs determine BTU output or fuel type.
- That all compatible burner families use the same fireplace dimensions.
- That all compatible burners use the same pilot or remote controls.
- That the logs can be freely rearranged.
- That significant soot accumulation is normal.
- That the system can be operated with the chimney damper closed.
Final planning check: Use the Split Oak Designer Plus placement instructions for the exact seven-log arrangement, then use the installation manual for the selected G4, G45, G45 Stainless Steel, or G46 burner to confirm fireplace sizing, fuel type, gas supply, control configuration, chimney and damper requirements, operation, maintenance, and professional installation.
